Washdown Stainless Steel Reducers
FEATURES
- IP69K Certified & NSF Approved Stainless Steel Reducers
- Full Stainless Steel housing
- 316L Stainless Steel hollow shaft
- Double Worm Shaft Bearings, to relieve pressure on the motor bearings
- Twin Viton seals with 316L stainless steel shields
- Optional interchangeable right or left hand output shafts available

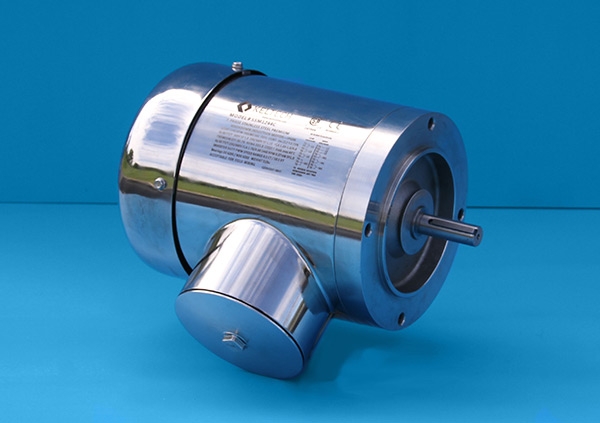

Motors
FEATURES
- IP69K RATED CSA – C us CE Certified ULRInverter duty – Nema MG 1 Part 31Laser Etched NameplateOversized Bearings on both ends c/w Locked Drive-end
- Motors will withstand water pressure of between 1160-1450PSI, at a temperature of 176°F / 80°C
- Oversized Conduit Box c/w Lead Seal
- Drill & Tapped Drains
- Double Lip Contact Seals
- Corrosion Resistant
Inline Ratio Multipliers
FEATURES
- Smooth Stainless Steel Wash-down housing
- Stainless Steel output shaft with oversized bearings
- Nema C-Face input design
- Specifically designed for the food and beverage industries
BENEFITS
- Will accept any manufacturers C-face motor – Ratings up to 5Hp
Variable Frequency Drives
E3 series IP66 Washdown Duty Drives
Enclosed drives for direct machine mounting, dust tight and ready for washdown duty
Available in
- 1/2 HP -1.5 HP – 110V single phase input – 230V three phase output
- 1HP -2HP – 575V input, 575V output
Aluminum
Reducers
K30A – K85A
- Single Piece aluminum alloy housing
- Single piece alloy steel input and worm shaft.
- Oversized Input and Output bearings
- Standard hollow output shaft mounting
- Impregnated and machined bearing caps
- Standard Nema C flange
Motors
Light Weight Aluminum Motors. Three Phase 208-230/460 & 575V
Available in Nema and Metric Frames
- Light weight aluminum construction
- CSA – CE and UL Certified
- True Inverter Duty Wire Standard, 4:1 Con, 10:1 Var
- Fin Body design for cooler running temperatures.
- Oversized Conduit box complete with strain relief connector.
- Different Conduit box options available upon request
- PAINT FREE
Inline Ratio Multipliers
Aluminum Inline Ratio Multipliers
- Paint free aluminum. Will not chip or flake overtime
- Standard Nema C flange for easy installation and replacement. Also available in IEC
- Single Piece aluminum alloy housing
- Can be used with optional feet kit as a stand alone helical inline reducer
- Can be combined with our right angle reducers to create slower outut speeds
Keltech Has Received The Following Certifications:
